Well Watcher™ System Features & Specifications
Explore the components, controls, tank configurations, pump options, and technical specifications that make up the Well Watcher™ system.
At-a-Glance System Specifications
- Water Source: Well
- Recommended Well Yield: Approximately 1 GPM+
- Collection Method: Adjustable water collection
- Well Pump Control: Existing pressure switch & bladder tank
- Water Storage: 100+ or 210+ gallon tank options
- Tank Configurations: Vertical, Horizontal & Low Horizontal
- Pressure Delivery: Booster / VFD pump
- Standard Inlet: 1"
- Tank Level Control: High Float & Manual Overfill Protection
- Flow Monitoring: Digital Flow Meter & Totalizer
- System Voltage: 115V dedicated 15A circuit
- Pump Voltage: Electrical requirements vary by selected pump
- Standard Installation Location: After sediment filtration; before water treatment
Need Help Choosing a Well Watcher™?
What Makes Up a Well Watcher™ System?
The Well Watcher™ works with your existing well pump and pressure system to collect and store water at an adjustable rate. Each component works together to manage water collection, maintain stored water levels, and deliver consistent pressure to the home.
High-Level Float
Monitors the tank’s upper water level and signals the actuated inlet valve to close when the tank is full.
Digital Flow Meter & Totalizer
Displays the incoming collection rate and tracks total water volume, helping monitor both how quickly and how much water is collected.
Mechanical Overflow
Provides an additional path for water to exit the tank in the event of an overfill condition.
Adjustable Water Inlet
Controls the rate of water entering the storage tank and automatically opens or closes based on the tank’s water level.
Pressure Pump
Draws from stored water and delivers consistent pressure and flow to the home or building.
Water Storage Tank
Stores collected well water so household demand is separated from the well’s immediate production rate.
Adjustable Water Collection
Collect
Monitor
Stop & Resume
The Well Watcher™ collects water from the existing well system at an adjustable rate, allowing the incoming flow to be set based on the well’s available yield. This controlled collection helps the storage tank refill gradually while continuing to use the home’s existing well pump, pressure switch, and bladder tank.
Automatic High-Level Control
As water is collected, a high-level float monitors the water level inside the storage tank. When the tank reaches its full level, the float signals the actuated inlet valve to close, automatically stopping water collection. As the water level drops, the inlet can reopen and collection resumes.
Together, the adjustable inlet and high-level float allow the Well Watcher to automatically maintain stored water without continuously filling the tank.
Monitor Water Collection in Real Time
The Well Watcher™ includes a digital flow meter and totalizer to provide a clear view of water entering the storage tank. It displays the current flow rate, making it easy to monitor the system’s adjustable collection rate and confirm how quickly water is being collected.
Flow Rate + Total Water Volume
In addition to displaying the current flow rate, the meter tracks the total volume of water that has passed through the system. This provides a useful reference for understanding both the rate and overall amount of water being collected over time.
Optional Well Pump Protection
The Cycle Sensor can be added to a Well Watcher™ system to monitor the operation of the existing well pump and provide additional protection against low-water conditions.
By monitoring the well pump’s electrical load, the Cycle Sensor can detect when the pump begins to run under abnormal conditions, such as when the well is no longer supplying enough water. When a low-load condition is detected, it shuts the well pump off to help protect it from running dry.
Automatic Restart
After a low-water shutdown, the Cycle Sensor can be set to wait for a designated recovery period before allowing the well pump to restart. This gives the well time to recover before water collection resumes.
Water Storage Options
Water Storage Designed Around Your Space
Well Watcher™ systems are available with multiple tank sizes and orientations to accommodate basements, utility rooms, garages, crawl spaces, and other installation areas.
Vertical 210 gallon
L41″ x W24″ x H64″
Effective Water Storage: 195gal
Horizontal 210 gallon
L64″ x W24″ x H42″
Effective Water Storage: 185gal
Low Horizontal 210 gallon
L64″ x W37″ x H28″
Effective Water Storage: 175gal
Vertical 100 gallon
L27″ x W24″ x H52″
Effective Water Storage: 90gal
Tank Construction
- Virgin polyethylene construction
- FDA-compliant resin for potable water storage
- Ribbed construction
- 16″ vented lid
- Installed tank fitting/spigot
- 20-gallon graduations
- Multiple orientations available
Need more information about tank construction, dimensions, colors, and configurations?
Pump Options for Your Water Demand
Well Watcher™ systems can be configured with different pressure pumps based on the required flow, pressure, electrical supply, application, and installation layout.
Bladder Tank Requirements
Installation Note: For best performance and to help prevent rapid pump cycling, install a bladder tank on the discharge side of the pump. DAB recommends sizing the bladder tank based on your pump’s normal peak flow:
- 2-gallon bladder tank – E.SYBOX Mini 3 (approximately 10 GPM)
- 4-gallon bladder tank – E.SYBOX, DTRON 2, and DIVER (approximately 20 GPM)
- 10-gallon bladder tank – E.SYBOX MAX (approximately 50 GPM)
With a Well Manager® system, the existing pressure tank can often be reinstalled after the system to serve as the bladder tank.

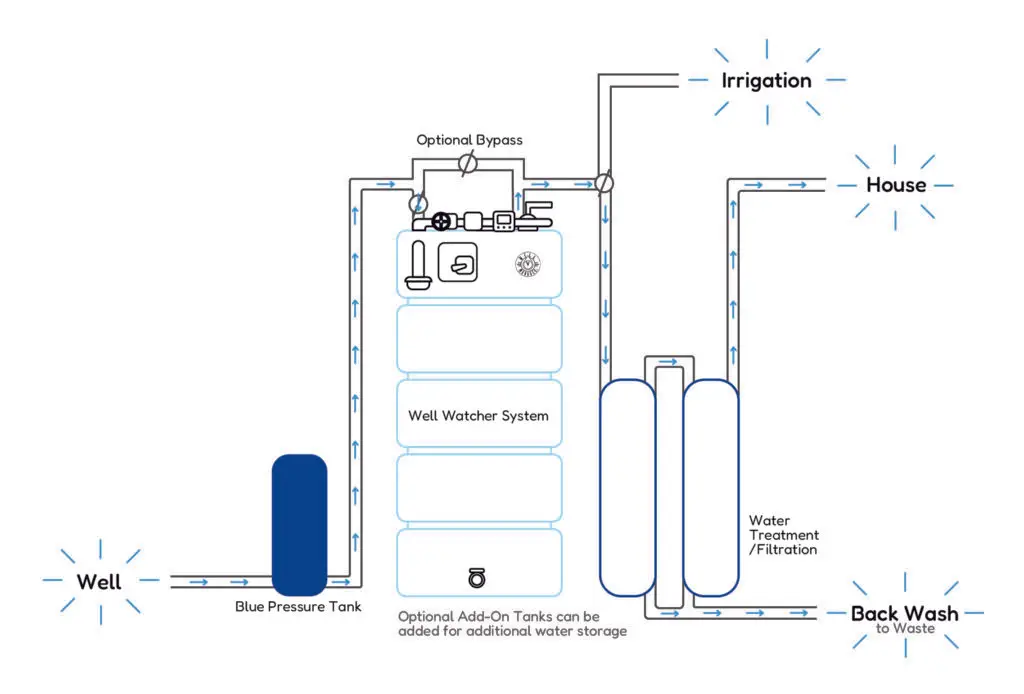

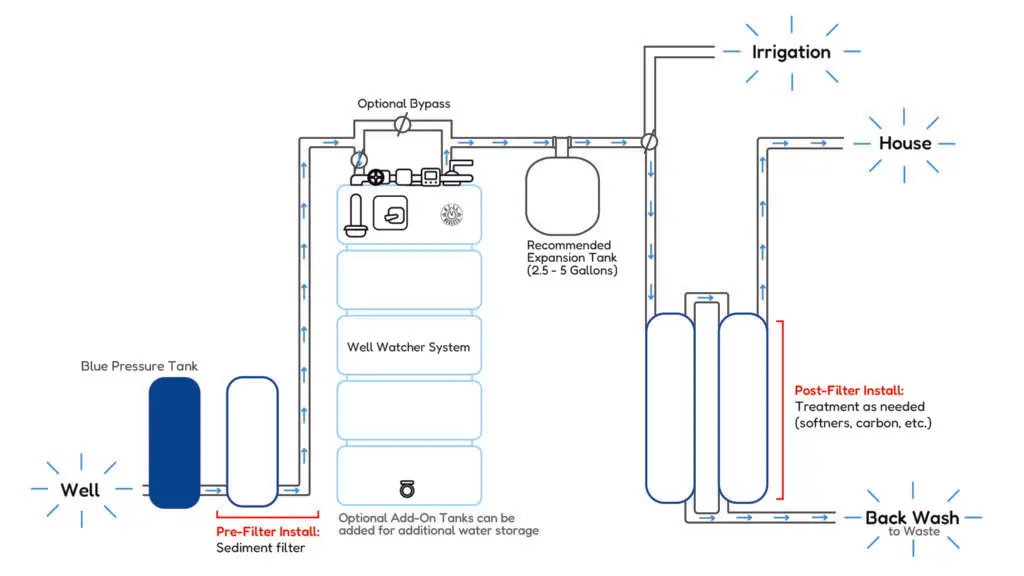

Where Well Watcher™ Fits in Your Water Line
Diagram highlights pre- and post-filtration recommendations for a complete setup.
Well
Sediment Filtration
Well Watcher™
Water Treatment
Home
Bladder Tank Requirements
Installation Note: For best performance and to help prevent rapid pump cycling, install a bladder tank on the discharge side of the pump. DAB recommends sizing the bladder tank based on your pump’s normal peak flow:
- 2-gallon bladder tank – E.SYBOX Mini 3 (approximately 10 GPM)
- 4-gallon bladder tank – E.SYBOX, DTRON 2, and DIVER (approximately 20 GPM)
- 10-gallon bladder tank – E.SYBOX MAX (approximately 50 GPM)
With a Well Manager® system, the existing pressure tank can often be reinstalled after the system to serve as the bladder tank.
Planning an installation?
See plumbing requirements, electrical information, diagrams, installation videos, and common installation questions.
Learn More About Your Well Watcher™
Video Testimonials
Ready to Plan Your Installation?
From plumbing and electrical requirements to system placement, startup videos, and installation FAQs, our Installation Resources walk through what you and your installer need to know.
Replacement Parts & Long-Term Serviceability
Designed to Be Serviceable
Keep your Well Watcher™ system operating as intended with replacement components for maintenance, repairs, and long-term system care. Replacement parts are available for key Well Watcher components, including water collection, tank level control, monitoring, and other system hardware.
Looking for a replacement component?
Warranty & Support
Well Manager® systems are backed by product warranty coverage and ongoing support from our team. Individual components may have specific warranty terms based on the equipment included with your system.
Well Watcher™ System Warranty
Well Watcher™ system components are covered by a 1-year parts warranty, providing support for eligible component issues during the warranty period. More details come with Well Watcher™ Manual.
Pump Warranty
Pressure pumps are covered according to the applicable manufacturer’s warranty. Coverage and warranty length vary by pump model.
