Well Watcher™
Well & City Water
wells producing 1-2 gpm +
What Is the Well Watcher™ System?
Reliable Water Management for Low-Yield Wells
The Well Watcher™ System is a water management, storage, and pressure system designed for moderate low-yield wells (typically 1 gpm or more).
Instead of drawing water directly from the well during household use, the system collects water at an adjustable, controlled rate, stores it in an integrated storage tank, and then delivers steady household water pressure using a built-in booster pump—whenever you need it.
In simple terms: It manages water supply first—providing a buffer between your well and demand—and then boosts pressure for reliable household use.
How does the Well Watcher™ System work with my water supply?
The Well Watcher™ System installs after your existing pressure tank and pressure switch and works alongside them. Your pressure tank and switch continue to control the well pump, while the Well Watcher™ collects water at an adjustable rate, stores it in its integrated storage tank, and delivers consistent pressure to the home using its built-in pump.
This allows your well to operate normally while the system manages storage and pressure delivery.
The Well Watcher™ System collects water at an adjustable flow rate, allowing the system to be matched to your well’s natural recovery rate. For optimal performance and well protection, we recommend setting the fill rate to approximately half of your well’s yield (for example, a 1 gpm well would use a 0.5 gpm fill rate).
This controlled collection helps reduce stress on the well pump, prevents over-pumping, and allows the well sufficient time to replenish naturally.
Stored water is then pressurized and delivered on demand, ensuring steady, reliable pressure even during periods of higher household use.
A Lifetime of Reliable Water and Pressure! - 100% Guaranteed Results
Well Watcher™ System Overview
See How Our Systems Changed Lives
“While we reside on one of the largest collections of fresh water in the world our well was incredibly skimpy. With the addition of the Well Watcher we been able to install a washing machine. We can now entertain members of our family without the fear of running our well dry as was the case previous.”
William Yanke
Why Choose Well Watcher™?
More Than Just a Water Tank
Precision Water Collection
From Pressure Tank
- Collects water from your existing pressure tank through an electric ball valve
- Controlled by a high float switch in the storage tank to prevent overfilling
- Manually adjustable collection rate (set by installer) ensures safe draw from the well system
Intelligent Fill Control
High Float & Ball Valve
- Well Watcher control logic opens/closes the ball valve based on tank level input
- Coordinates water collection and pump usage to avoid overflow
- Simple, automated performance designed for protection and efficiency
Integrated Digital Flow Meter
Live Water Intake
- Displays live flow rate, includes resettable totalizer, and allows on-site calibration
- Helps monitor well output, track usage, and optimize performance
Overfill Pipe
Homeowner Protection
- Built-in overflow pipe to safely divert excess water
- Direct-able to a floor drain, sump pit, or exterior outlet
- Prevents flooding from overfill events or float failure
*Optional* Cycle Sensor
Pump Protection
- Monitors for rapid cycling or dry-run events
- Automatically shuts off the pump to prevent system damage (adds an extra layer of protection)
Water Storage
210+ Gallons
- Provides a reserve of collected water for consistent availability
- Ensures steady supply during peak use, outages, or dry spells
- Critical for homes with limited well production and high water demand
DAB VFD Pump(s)
Consistent Output Pressure
- Delivers quiet, efficient water pressure from the storage tank to the home
- Automatically adjusts to flow demand for consistent pressure across all fixtures
- Ideal for maintaining pressure during showers, laundry, irrigation, and more
Adjustable Flow & Delivery Path
Incoming & Outgoing
- Incoming Water: From pressure tank via electric ball valve, timed by float switch
- Outgoing Water: From storage tank to home through DAB pump, ensuring steady pressure
Plug & Play
Electrical Setup
- The system plugs into a dedicated, breaker-protected outlet for safe and stable operation
- When using an external DAB pump, it plugs directly into the outlet on the Well Watcher™ control system
- Dedicated 115V 15 AMP
- Ensures isolated power for both system logic and pressure delivery
Learn More About Well Watcher™ Systems
Get the Details on Well Watcher™ Systems
Well Watcher™ Flexibility – Built for Any Space
Space Flexibility
Vertical, Horizontal, Low Horizontal
Expandable Storage
Add 210-Gallon Tanks
Custom Pump Options
Internal, External, Dock-Mounted
Learn More
Well Watcher™ Specs page.
Examples of Versatile Well Watcher Systems:

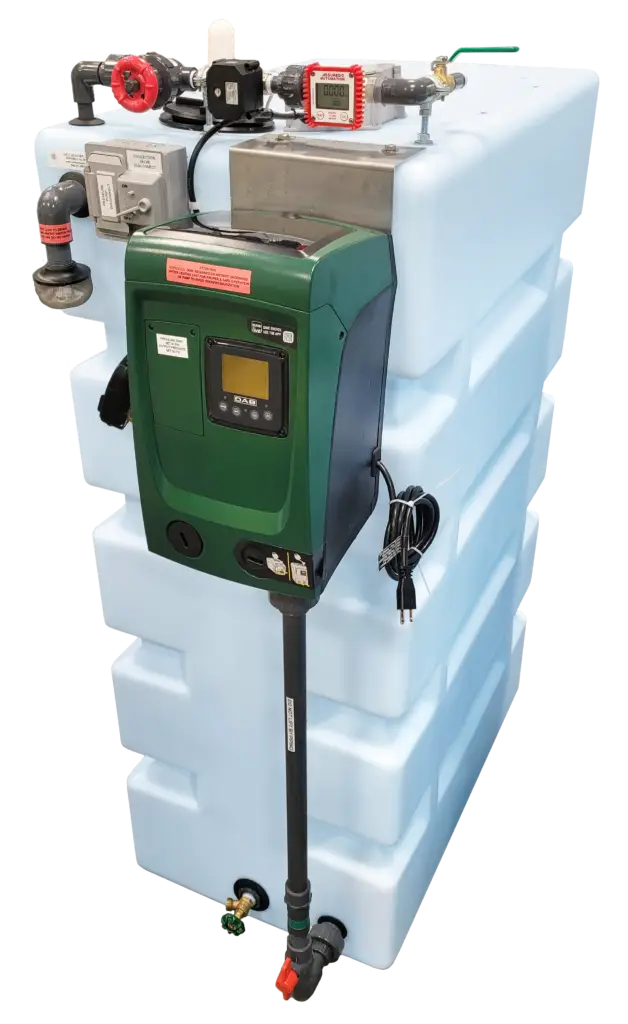

Well Watcher 210 Vertical with an External DAB EsyBox Mini 3 Pump

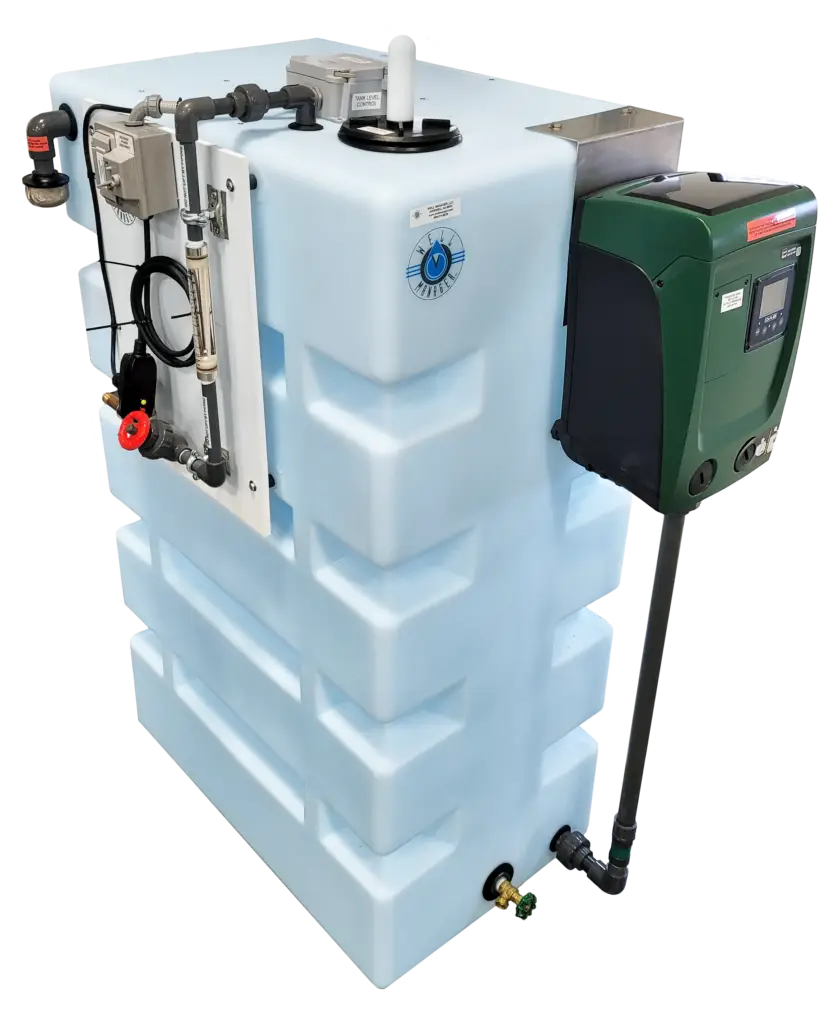

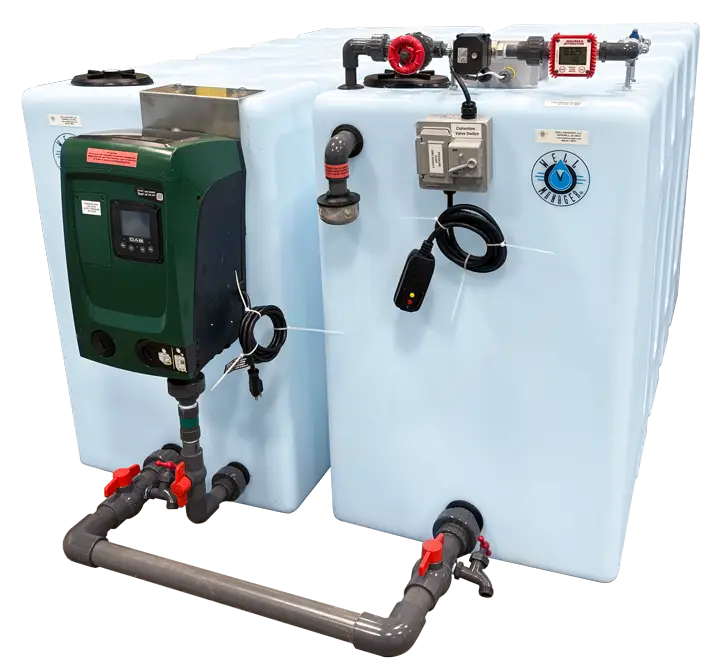

Well Watcher 210 Wide Vertical with an external DAB EsyBox Mini 3 Pump
Well Watcher 210 Low Horizontal Two Tank System with an External DAB EsyBox Mini 3 Pump

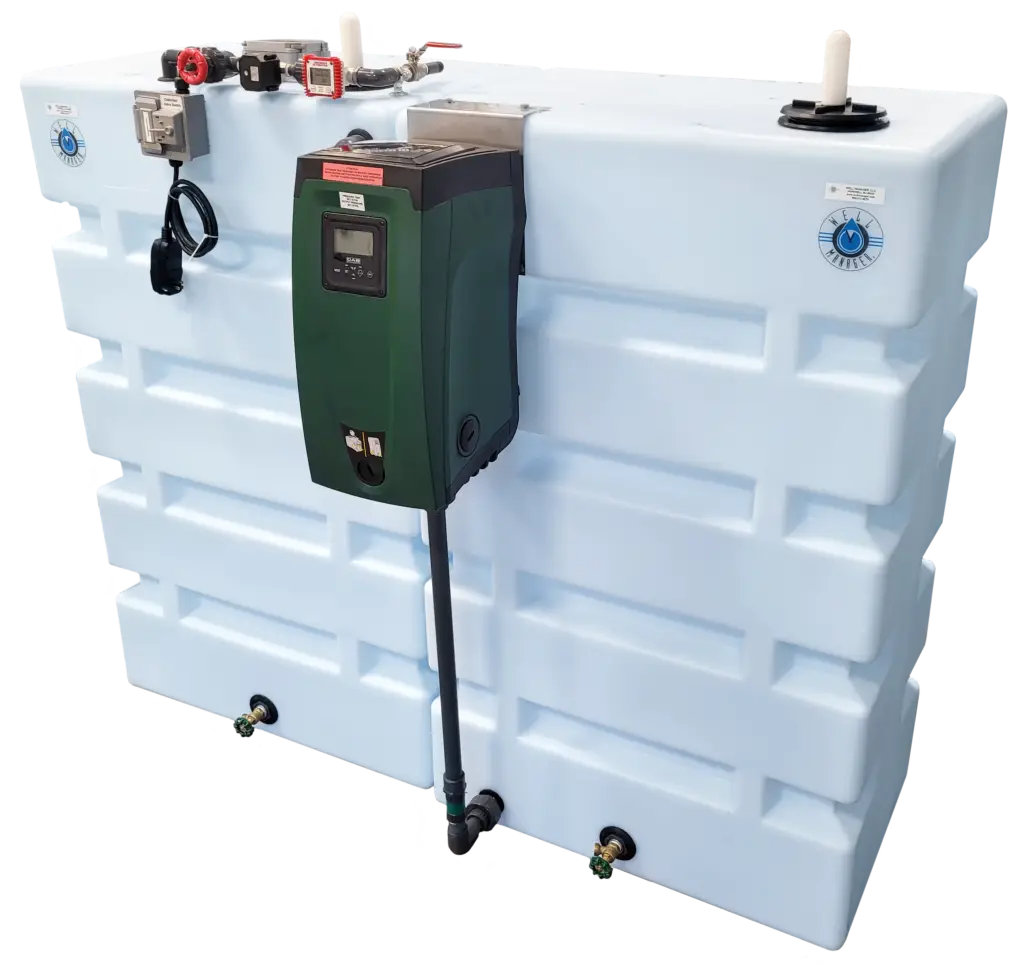

Well Watcher 210 Wide Vertical Two Tank System with an External DAB EsyBox Pump

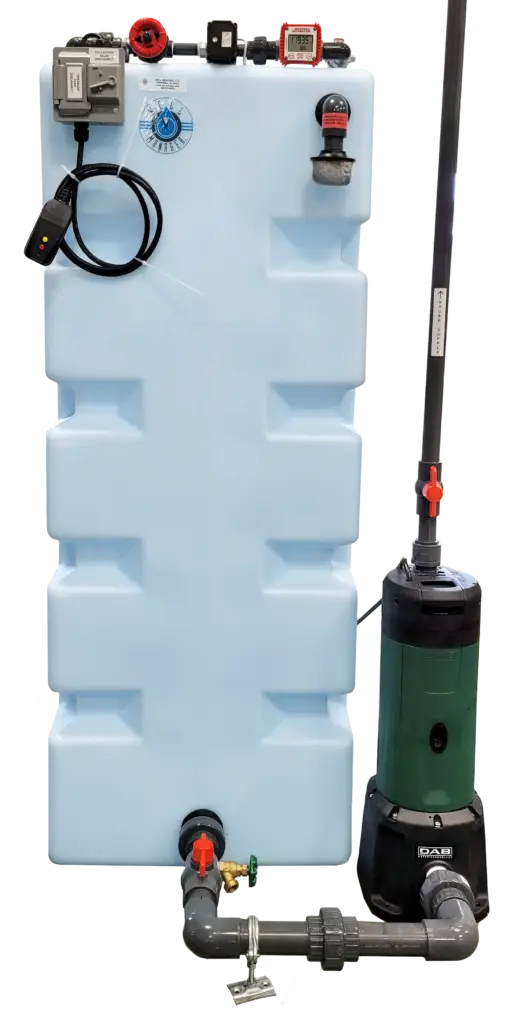

Well Watcher 210 Vertical with an External DAB DTRON 2 Pump

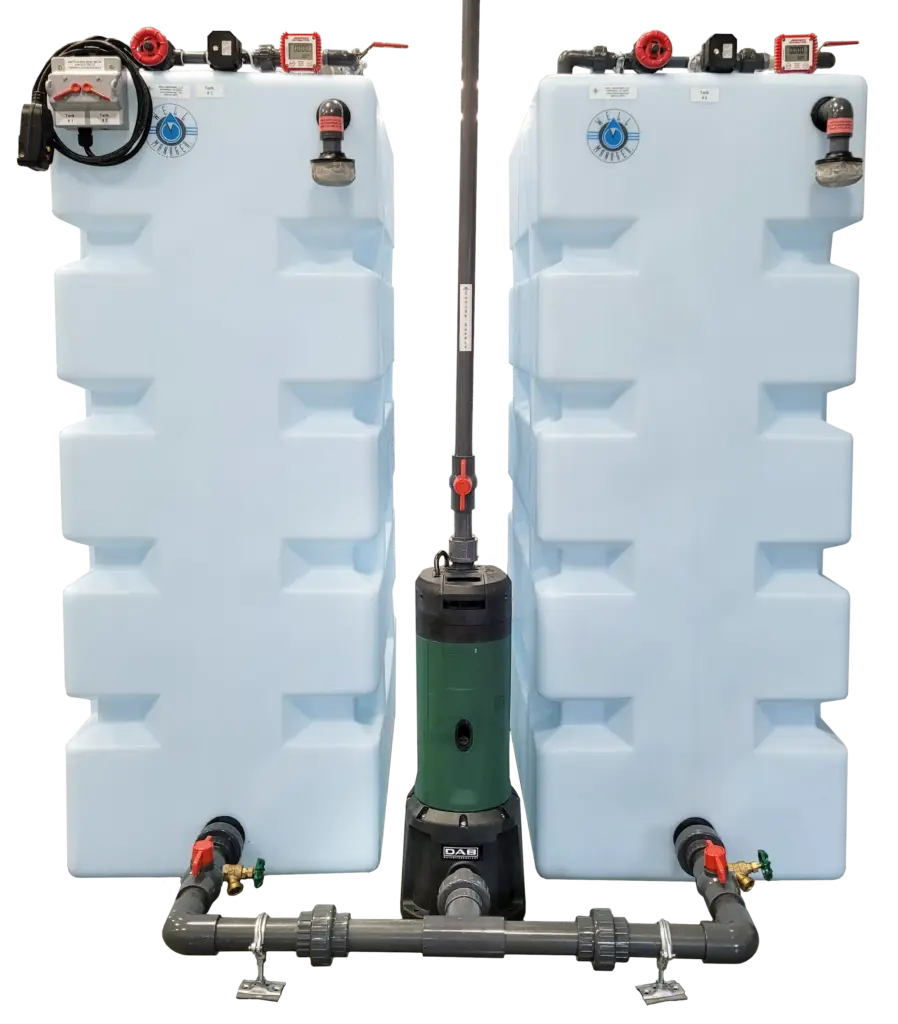

Well Watcher 210 Vertical Two Tank System with an External DAB DTRON 2 Pump

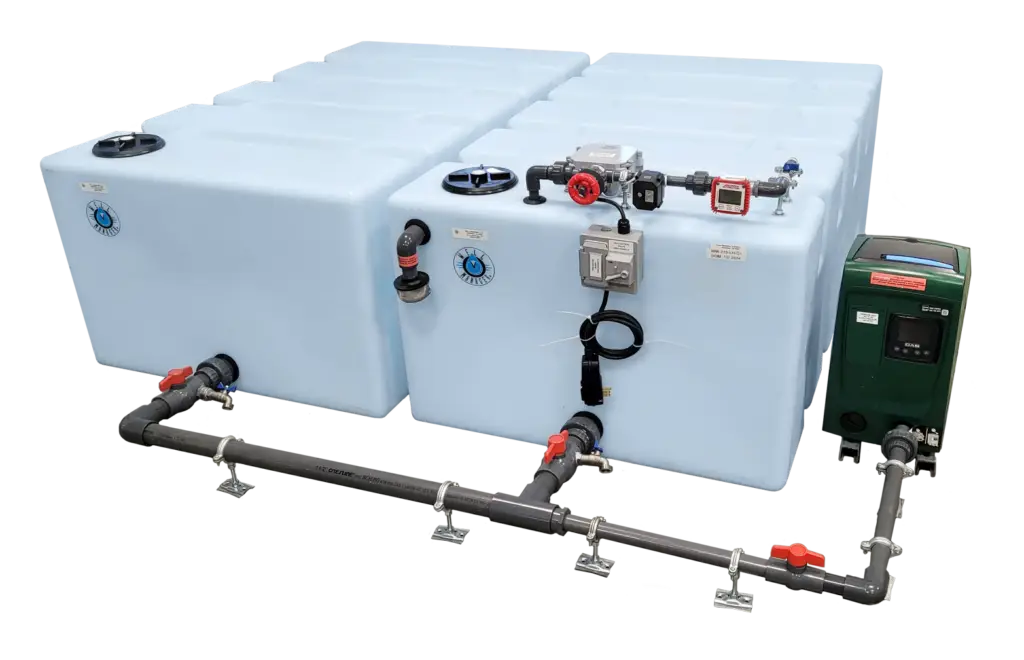

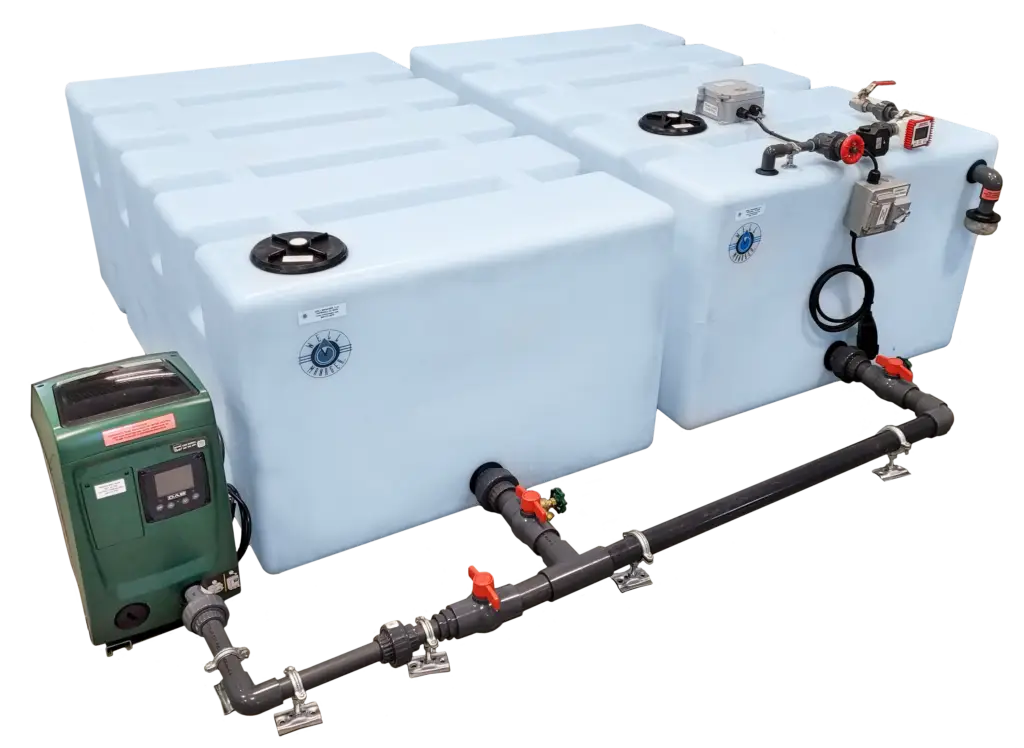

Well Watcher 210 Low Horizontal 2 Tank System with an External DAB E.SYBOX Mini 3 Pump
Well Watcher 210 Horizontal 2 Tank System with an External DAB E.SYBOX Mini 3 Pump

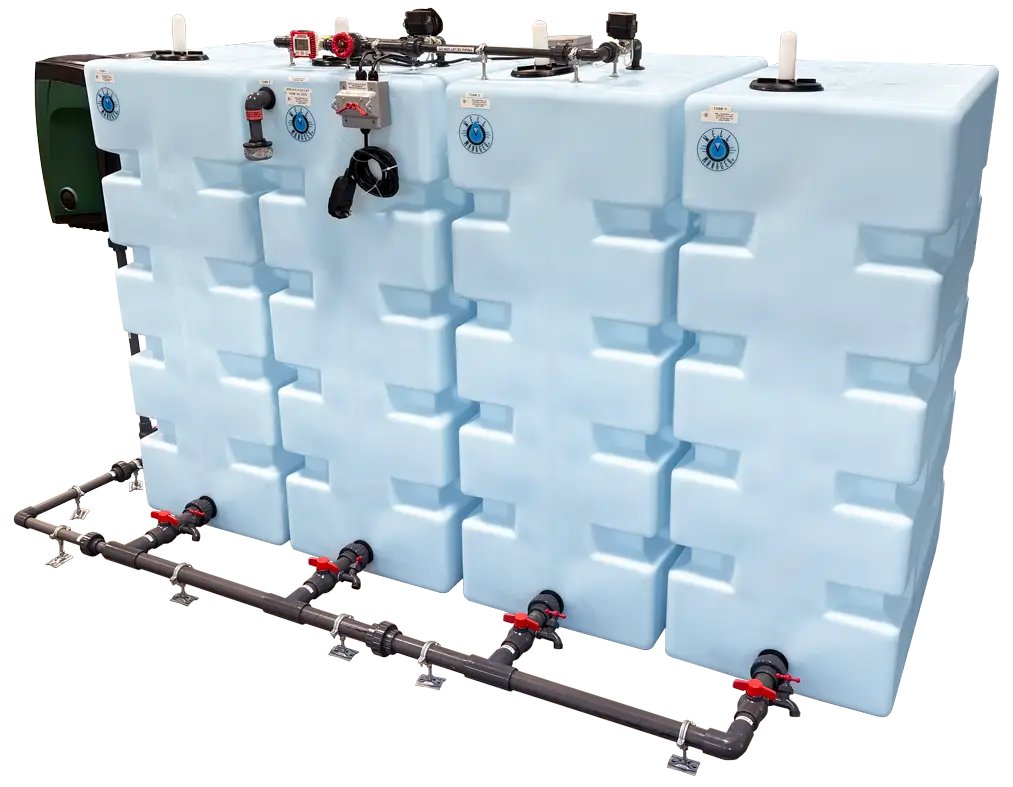

Well Watcher 4 Tank Vertical System with an External DAB E.SYBOX 2HP Pump
Well Manager® and Well Watcher™ 210 Hybrid Three Tank (630 gal) Horizontal System with a DAB MAX Pump. Manages two wells.
How Our Systems Compare to Traditional Options
Drilling or Hydro-Fracking
Booster Pumps Only
Pressure Tank Only
Real Installations. Real Results.
Explore real installations and see how our systems are set up in homes and businesses across the U.S. and Canada.

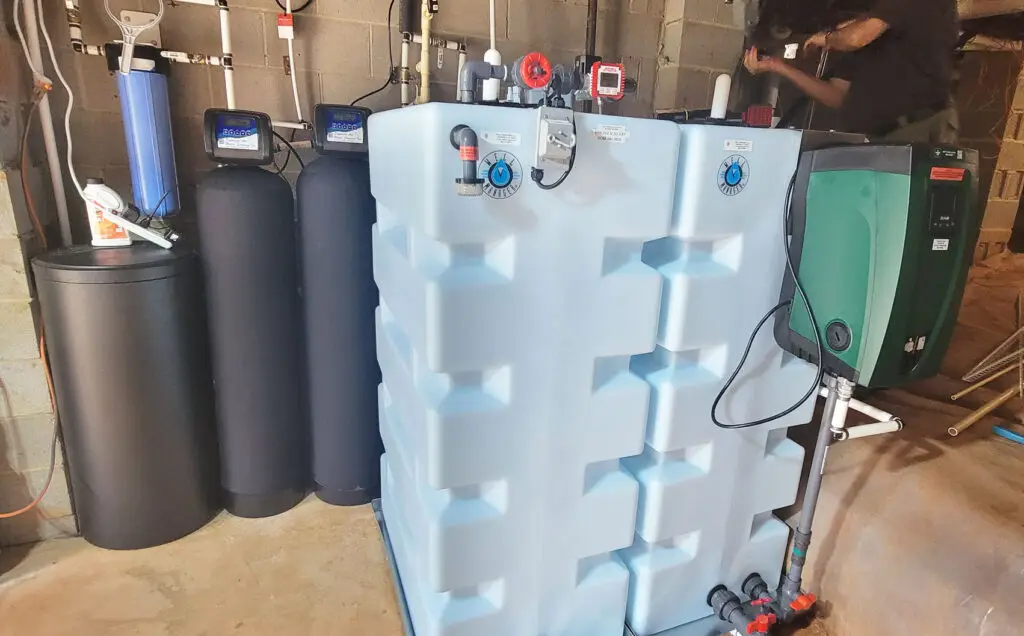

Residential Install: 2 Tank Well Watcher™ System with DAB E.SYBOX
Residential Install: Well Watcher™ 3 Tank System with DAB Mini 3 Pump

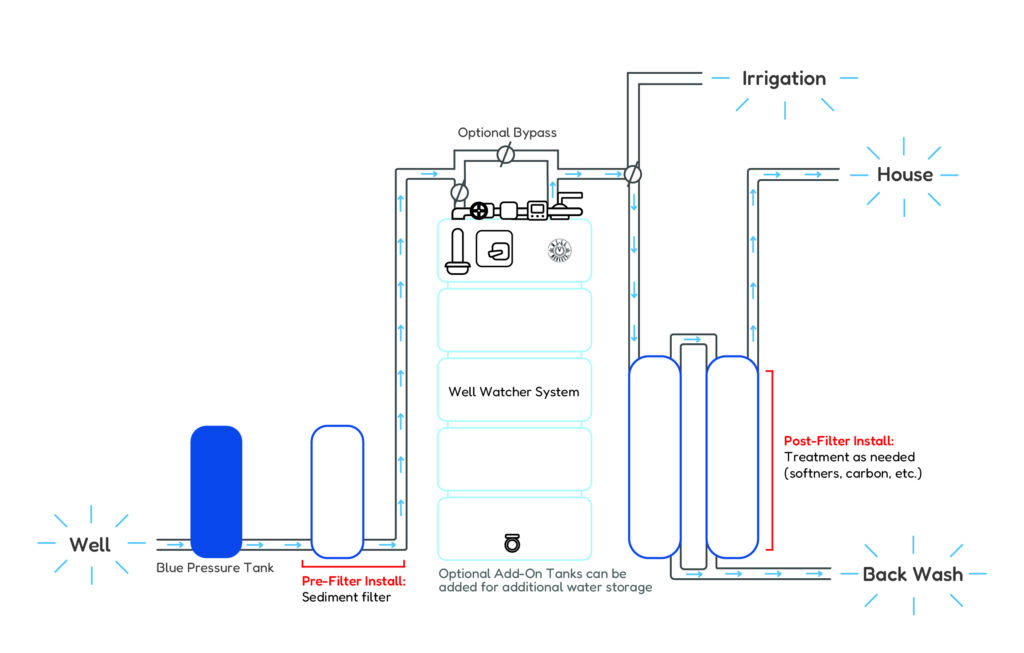

Where Well Watcher™ Fits in Your Water Line
Diagram highlights pre- and post-filtration recommendations for a complete setup.
Installation Note: An expansion tank (2.5–5 gallons minimum) is recommended on the pump’s outlet side to prevent short-cycling.
Various Tank Sizes & Configurations
Installation Resources
Warranty
This product is warranted to be free of defects in materials and workmanship for a period of one year from the date of the original purchase.
Individual components may be warranted by their respective manufacturers for periods longer than one year.
