ConstaBoost™ System Features & Specifications
ConstaBoost™ System Features
Constant Pressure Boosting
Delivers steady, consistent water pressure throughout the home, eliminating pressure drops caused by fluctuating demand or low incoming supply.
Fixed, Controlled Fill Rate
Supplies water to the system at a fixed, non-aggressive rate, helping protect the well or source while maintaining reliable pressure output.
FDA-Compliant Storage Tanks
Manufactured from virgin polyethylene resin meeting FDA Regulation 21 CFR 177.1520 (c) 3.1 & 3.2 for safe, long-term potable water storage.
Simple, Automated Operation
Designed to operate automatically without complex controls, ConstaBoost™ provides pressure stability with minimal user interaction.
Modular & Scalable Design
Easily expand storage capacity with additional tanks as needs change.
Installer-Friendly Layout
Designed for straightforward plumbing and electrical integration.
Overfill Protection (Float + Mechanical Overflow)
A high-level float signals when the tank is full, while a dedicated mechanical overflow port provides passive backup protection against overfilling.
Real-Time Flow Detection (Add-On Required)
Available with the optional Cycle Sensor module, this feature monitors incoming water flow to confirm supply is present and stable, supporting safe system operation and pump protection.
Dry-Run Protection (Add-On Required)
Available with the optional Cycle Sensor module, Protects the pressure pump by preventing operation when water is unavailable, reducing wear, overheating, and premature pump failure.
ConstaBoost™ FAQs
What is ConstaBoost™, and how does it work?
ConstaBoost™ is a water pressure-boosting system designed to deliver consistent, high-pressure water throughout your home or business. It’s ideal for homes with reliable water sources but inconsistent water pressure.
Who can benefit from a ConstaBoost™ system?
ConstaBoost™ is ideal for homeowners or business owners who experience low water pressure but don’t have issues with water yield. Typically requiring adequate water storage and consistent output pressure to run their homes or businesses efficiently.
What sets ConstaBoost™ apart from traditional pressure boosters?
Unlike traditional pressure boosters that can cause pressure fluctuations, ConstaBoost™ uses a storage tank and a VFD pump to provide consistent water pressure, eliminating surges and improving the performance of household appliances.
How does ConstaBoost™ improve low water pressure in a home?
ConstaBoost™ is a whole-house water pressure booster system that collects water at a fixed rate, stores it in a tank, the re-pressurizes throughout the home. By pulling from a dedicated storage tank, it prevents fluctuations in pressure, delivering steady water flow for showers, faucets, and appliances—even during peak demand.
Do I need a booster pump to fix low water pressure in my home?
If your home has low water pressure, a booster pump like ConstaBoost™ can help increase water pressure to all taps and appliances. It ensures steady and reliable water flow, even during peak demand.
Versatile Sizes & Configurations for Any Space
Our 210-gallon water storage tanks are available in Vertical, Horizontal, and Low Horizontal orientations, offering unparalleled versatility to fit your space. 100-gallon tanks are available in a vertical configuration only, providing a smaller footprint ideal for tight or compact installations.
210 Gallon Systems

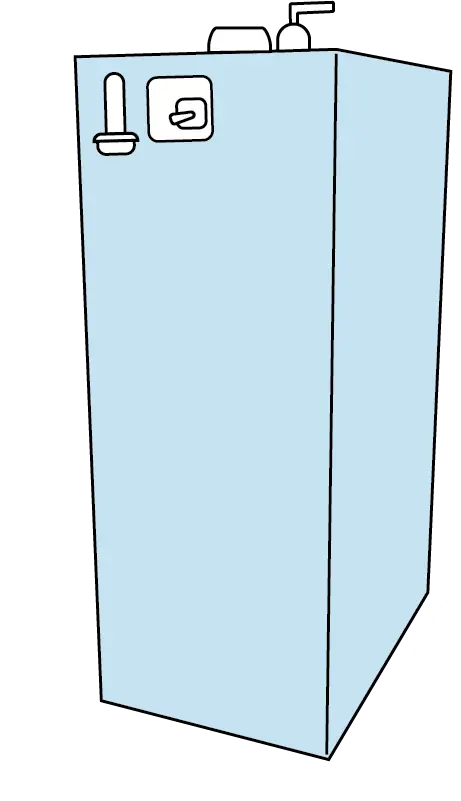

Vertical
L41″ x W24″ x H64″
Effective Water Storage: 195gal

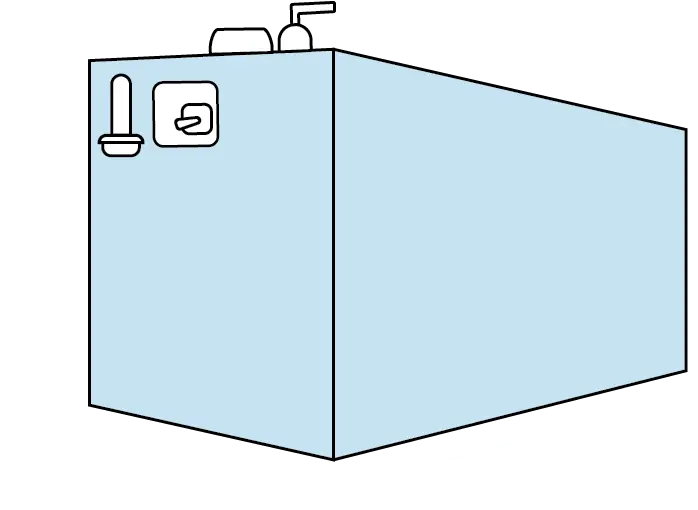

Horizontal
L64″ x W24″ x H42″
Effective Water Storage: 185gal

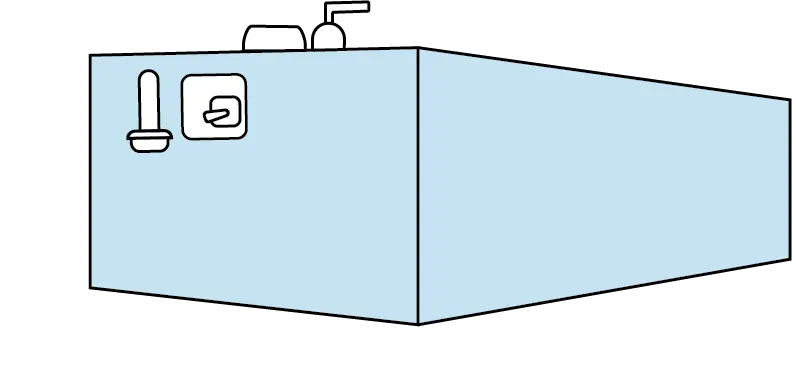

Low Horizontal
L64″ x W37″ x H28″
Effective Water Storage: 175gal
100 Gallon Systems
Vertical
L27″ x W24″ x H52″
Effective Water Storage: 90gal
This adaptability allows our tanks to be installed in basements, garages, crawl spaces, and other tight spaces, making them ideal for emergency water storage and long-term use.
With their multiple configurations and ease of placement, our tanks ensure you’ll always have access to a reliable water supply—no matter where you need it.
High-Performance Pumps for Consistent Water Pressure
Upgrade your well system with efficient, durable, and high-performance pumps designed to deliver consistent water pressure when you need it most.
DAB VFD Pumps
DAB DTRON 2
Internal & External
DAB DOC 68 M
For DTRON 2 External Version
DAB E.SYBOX Mini 3
External
DAB E.SYBOX
External
DAB E.SYBOX Diver
Internal & External
DAB E.SYBOX MAX
External
Expansion Tank Recommendation
DAB recommends installing an expansion tank (2.5–5 gallons minimum, or larger if preferred) on the discharge side of every pump. This prevents short-cycling during small water draws — like flushing a toilet — helping protect the pump and extending its service life.
Using an Existing Pressure Tank:
- Well Manager® Systems: When installing a Well Manager®, the existing pressure tank is typically relocated. It can often be installed after the Well Manager® system to serve as the expansion tank.
- Well Watcher™, ConstaBoost™, and RO Systems: Because the pressure tank remains before the pump, a separate expansion tank must be installed on the pump’s outlet side.
DAB Videos
DAB E.SYBOX | How To Prime Step by Step
DAB E.SYBOX | How To Adjust Output Pressure
DAB E.SYBOX | Complete Guide to Features, Menus & Apps
DAB Pump Specifications
Franklin VersaBoost Pro
Franklin VersaBoost Pro
External
Franklin VersaBoost Pro XT
External
Grundfos SCALA2
Grundfos SCALA2 (115V)
External
Grundfos SCALA2 (230V)
External
Digital Flow Meter (Add-On Module)
with Calibration & Resettable Totalizer
The Assured Automation Calibratable Digital Flow Meter provides precise water flow measurement with a resettable totalizer, allowing for accurate tracking of usage in well systems, water treatment setups, and industrial applications.
Designed for reliable performance and easy calibration, this meter ensures accurate flow readings across various flow rates.
- Digital display for clear, real-time readings
- Resettable totalizer for tracking cumulative flow
- Calibratable for precision adjustments
- Durable, high-quality construction for long-term use
- Ideal for monitoring well water, filtration systems, and water treatment applications
Cycle Sensor (Add-On Module)
The Cycle Sensor is a pump monitoring and protection device designed to detect dry-run conditions and rapid cycling that can damage pumps. When either condition is detected, the Cycle Sensor automatically shuts down the pump to prevent overheating, mechanical wear, and premature failure.
Rather than preventing these conditions from occurring, the Cycle Sensor acts as a fail-safe, responding immediately when unsafe operation is detected. This makes it especially valuable in systems with variable supply, low-yield wells, storage tanks, or fluctuating demand—where dry runs or rapid cycling can occur unexpectedly.
Once a fault condition is detected, the Cycle Sensor holds the pump off until conditions stabilize or the system is reset, helping protect equipment and extend pump life.
Where ConstaBoost™ Fits in Your Water Line
Diagram highlights pre- and post-filtration recommendations for a complete setup.
Installation Note: An expansion tank (2.5–5 gallons minimum) is recommended on the pump’s outlet side to prevent short-cycling.
Various Tank Sizes & Configurations
Installation Resources
Warranty
This product is warranted to be free of defects in materials and workmanship for a period of one year from the date of the original purchase.
Individual components may be warranted by their respective manufacturers for periods longer than one year.
